UPG - Charger 24 volt 5 amp - 24BC5000T-4 - 71698 - ELE1803474

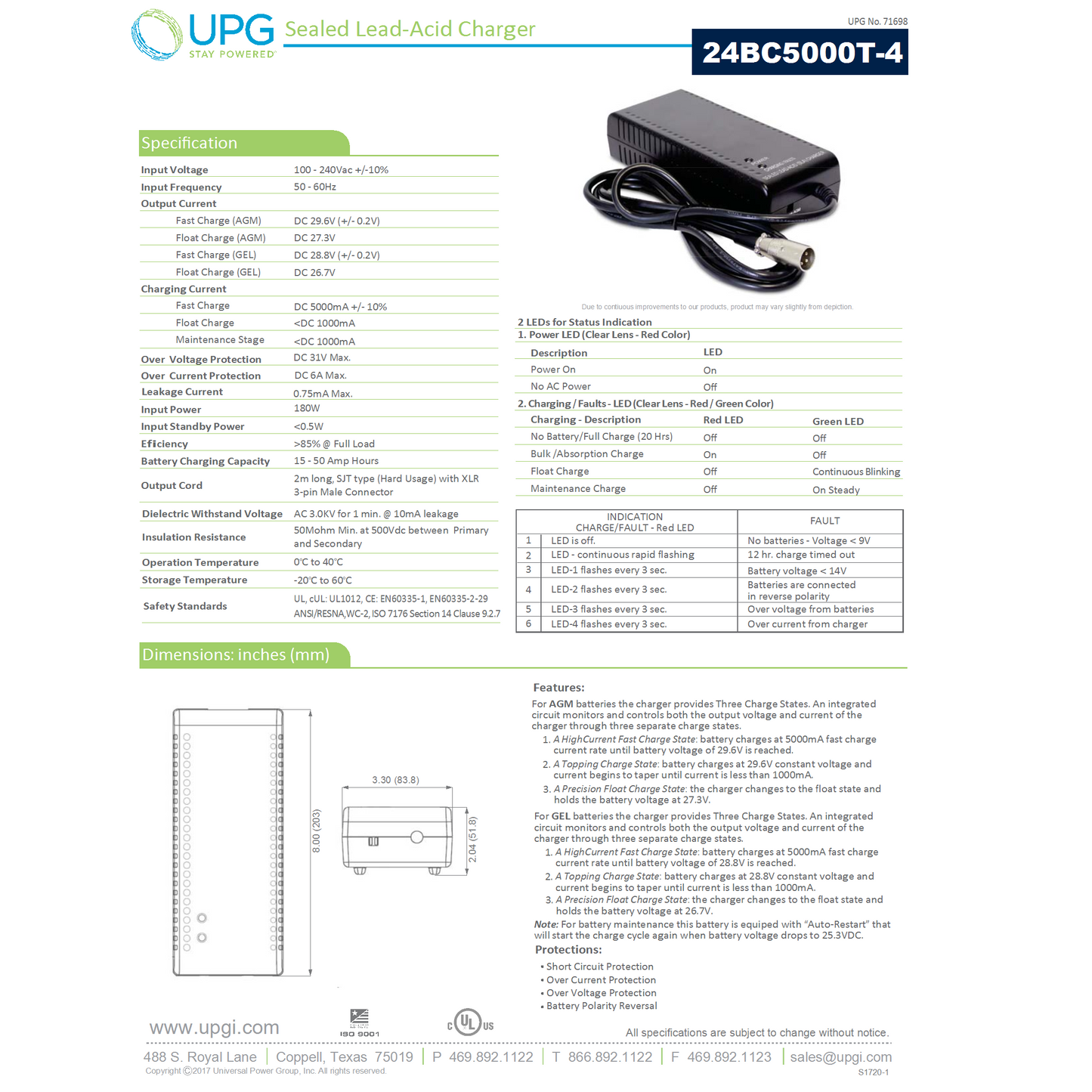

Specifications:

• Input Voltage: 100 - 240Vac +/-10%
• Input Frequency: 50 - 60Hz
• Output Current:
• Fast Charge (AGM): DC 29.6V (+/- 0.2V)
• Float Charge (AGM): DC 27.3V
• Fast Charge (GEL): DC 28.8V (+/- 0.2V)
• Float Charge (GEL): DC 26.7V

• Charging Current:
• Fast Charge: DC 5000mA +/- 10%
• Float Charge: <DC 1000mA
• Maintenance Stage: <DC 1000mA
• Over Voltage Protection: DC 31V Max.
• Over Current Protection: DC 6A Max.
• Leakage Current: 0.75mA Max.
• Input Power: 180W
• Input Standby Power: <0.5W
• Efficiency: >85% @ Full Load
• Battery Charging Capacity: 15 - 50 Amp Hours

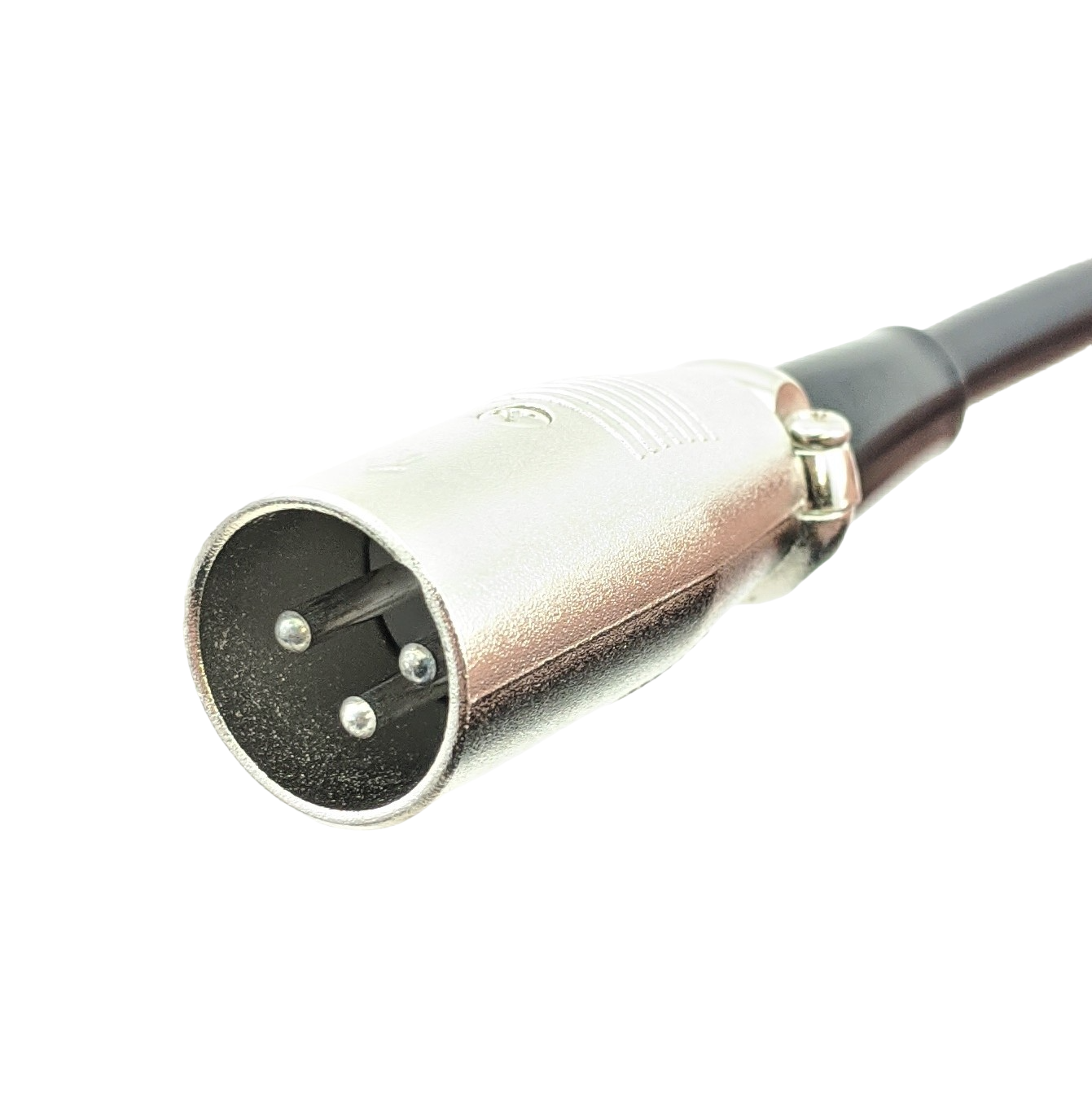

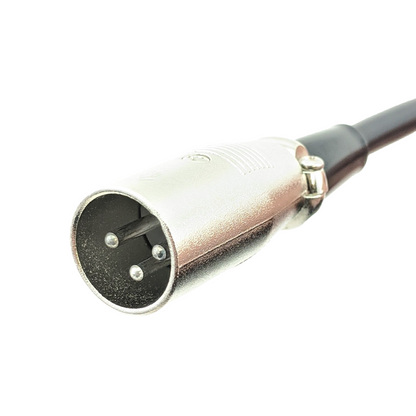

• Output Cord: 2m long, SJT type (Hard Usage) with XLR
  3-pin Male Connector
• Dielectric Withstand Voltage: AC 3.0KV for 1 min. @ 10mA leakage
• Insulation Resistance: 50Mohm Min. at 500Vdc between Primary
  and Secondary
• Operation Temperature: 0 C to 40 C
• Storage Temperature: -20 C to 60 C
• Safety Standards: UL, cUL: UL1012, CE: EN60335-1, EN60335-2-29 ANSI/RESNA,WC-2, ISO 7176 Section 14 Clause 9.2.7

Features:

• For AGM batteries the charger provides Three Charge States. An integrated circuit monitors and controls both the output voltage and current of the charger through three separate charge states.

1. A High Current Fast Charge State: battery charges at 5000mA fast charge current rate until battery voltage of 29.6V is reached.
2. A Topping Charge State: battery charges at 29.6V constant voltage and
   current begins to taper until current is less than 1000mA.
3. A Precision Float Charge State: the charger changes to the float state and
   holds the battery voltage at 27.3V.

• For GEL batteries the charger provides Three Charge States. An integrated
  circuit monitors and controls both the output voltage and current of the
  charger through three separate charge states.

1. A High Current Fast Charge State: battery charges at 5000mA fast charge
   current rate until battery voltage of 28.8V is reached.
2. A Topping Charge State: battery charges at 28.8V constant voltage and
   current begins to taper until current is less than 1000mA.
3. A Precision Float Charge State: the charger changes to the float state and
   holds the battery voltage at 26.7V.

• Note: For battery maintenance this battery is equipped with “Auto-Restart” that will start the charge cycle again when battery voltage drops to 25.3VDC.

Protections:

• Short Circuit Protection
• Over Current Protection
• Over Voltage Protection
• Battery Polarity Reversal
